DESCRIPTION

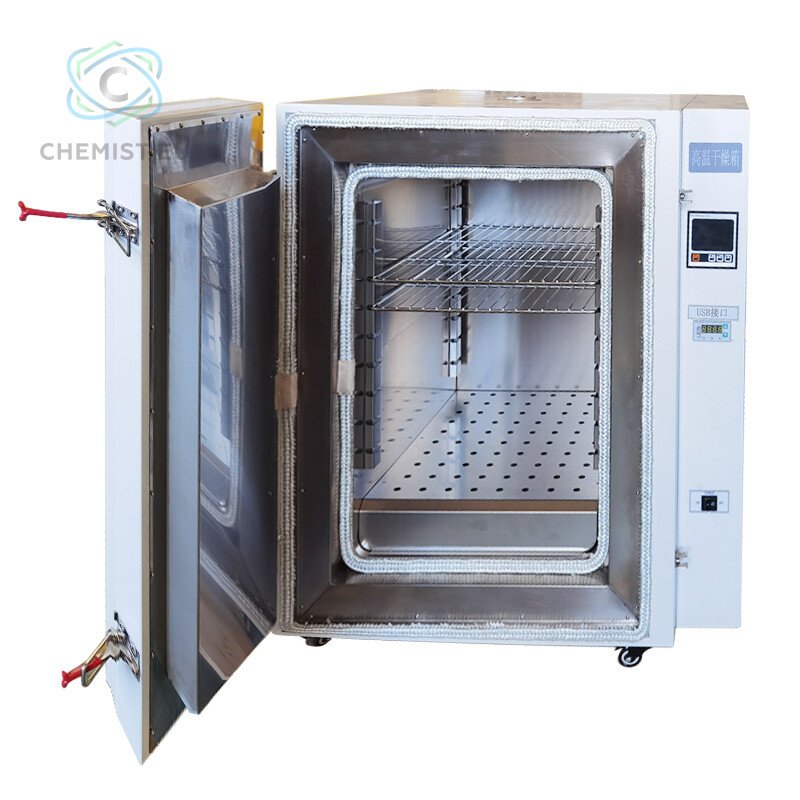

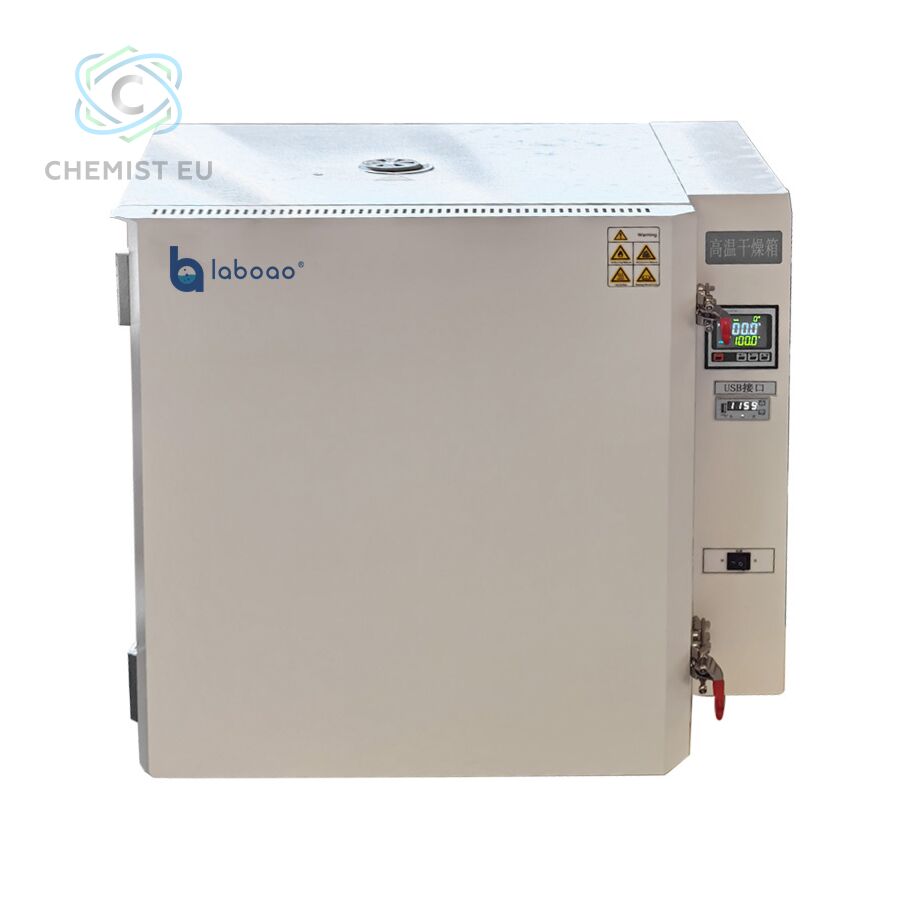

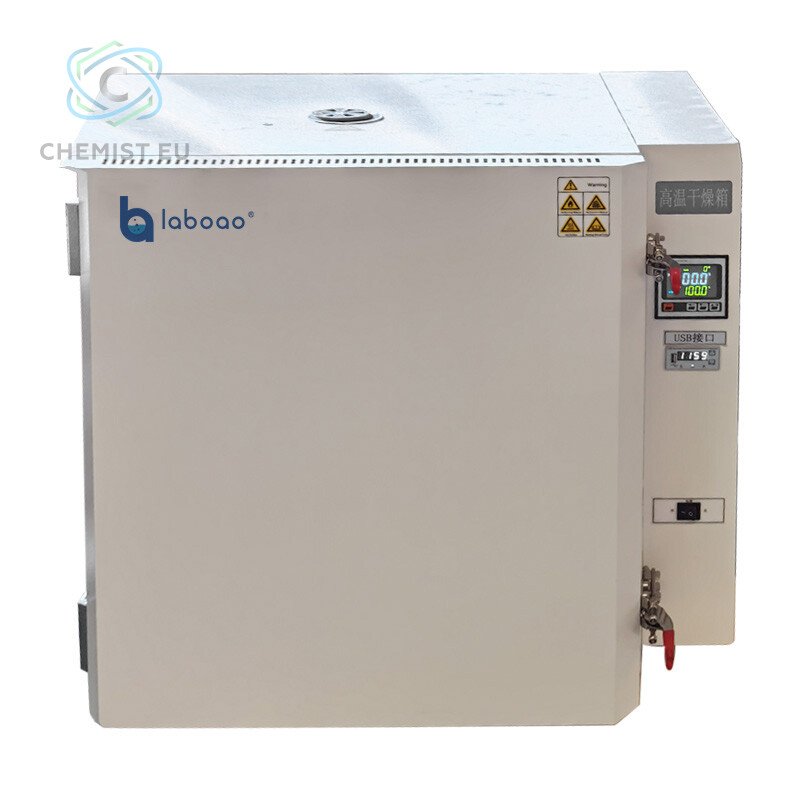

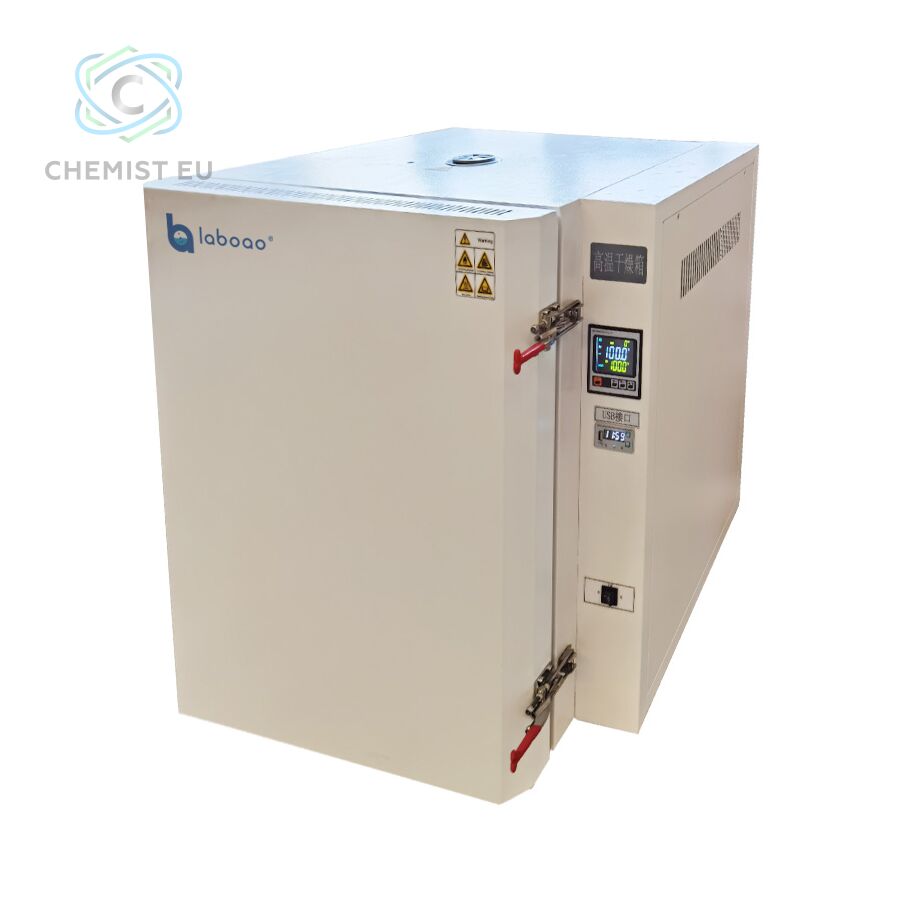

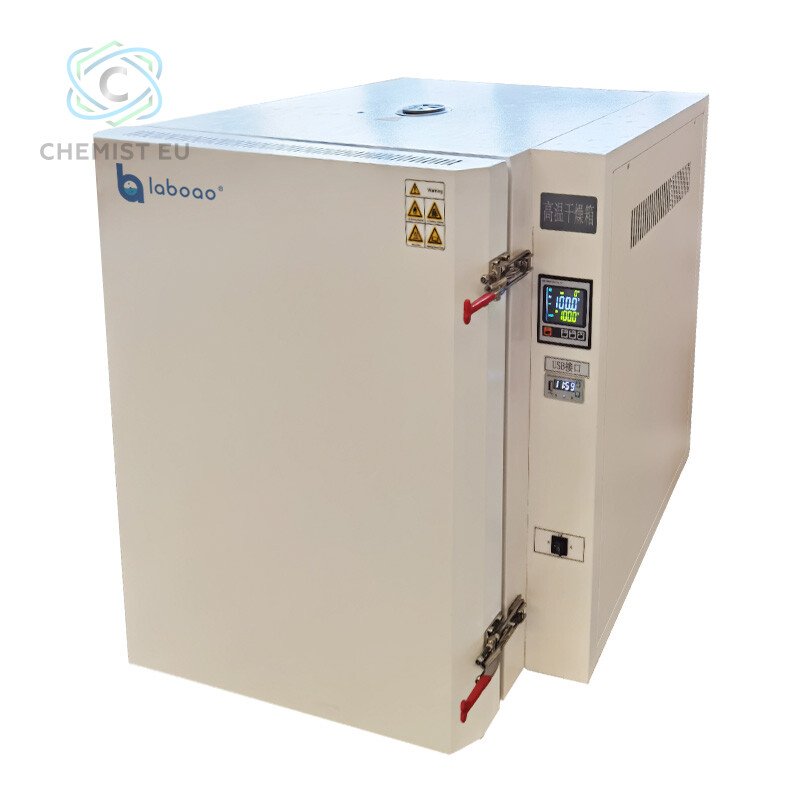

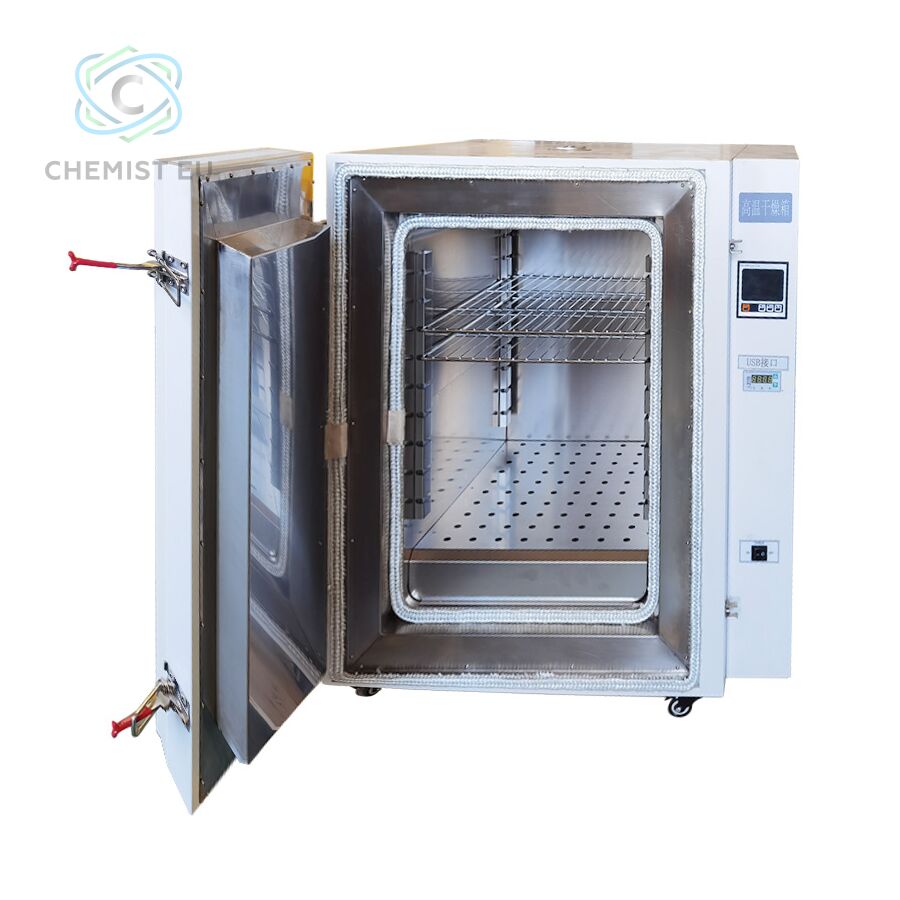

The drying box shell is made of high-quality steel plate with 304 hairline brushed stainless steel inside. It has good thermal insulation performance. A blower is installed on the top surface of the box chamber, which is equipped with an air duct in the box, so that the hot air in the box can be circulated regularly, thereby improving the temperature uniformity in the box.
After the upper exhaust pipe of the box chamber is opened, the exhaust gas in the box can be discharged to the outside of the box. The operating system of this machine is set in the electrical box on the left side of the box, and the temperature setting and temperature control in the box are completed by the intelligent microcomputer integrated temperature control system.
FEATURES
1.Can carry out high temperature heat resistance test and heat treatment of 400<C/500<C/600°C and below.
2.Intelligent microcomputer integrated temperature control system, PID logic operation function.
3.Color LCD screen with digital display, with set temperature, constant temperature, timing, self-tuning, over-temperature alarm
and other functions.
4.It has the function of recovering incoming calls, and also has the function of self-diagnosis of sensors and over-temperature alarm.
5.The inner tank is made of 304 stainless steel, with arc angle design, easy to clean.
6.The heating element adopts 304 stainless steel heating tube.
7.Inverted door lock, automatically locks when the door is closed, easy to open and good sealing.
8.Four casters are provided, which is convenient for moving the product, and there is a lock switch.
SPECIFICATIONS
| Model | LTWG-4136L |
| Mode | Forced hot air circulation |
| Operating temperature range | RT+10-400°C |
| long-term use temperature | Maximum temperature 400°C |
| 380°C | |
| Constant temperature fluctuation | ≤±2°C |
| temperature resolution | 0.1°C |
| Temperature distribution accuracy | ±2.5% |
| Heating rate | ≥5°C/min |
| Interior | 304 hairline brushed stainless steel |
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface |
| Thermal insulation material | Aluminum silicate fiber male |
| Heating pipe | Dust-proof stainless steel heating tube |
| 2.5KW | |
| Vent | Top inner diameter 40mm |
| Sensor | Type K |
| Timing range | 1-9999min |
| Operation mode | Fixed value operation, timing operation |
| Inner dimension(mm) | 450*550*550 |
| Dimensions | 820*760*950 |
| Outer packing size (mm) | 920*870*1080 |
| Volume | 136L |
| Tray carrier | 2 partitions |
| Partition load-bearing | 10KG |
| 220V 12A | |
| Accessories | 485 interface |
| Optional | Program controller (30 segments), independent temperature limit controller, sound and light alarm, timer, printing system, inert gas filling valve, emotional gas control system, mobile phone SMS alarm |
